Keycloak + OAuth2 Integration with Docker (WSL2 + Rancher)

1. Install WSL2 & Ubuntu

Open a terminal as Administrator and run:

wsl --install

If Ubuntu is not installed automatically:

wsl --install -d Ubuntu

Once Ubuntu is launched for the first time, you'll be prompted to create a UNIX username and password.

---

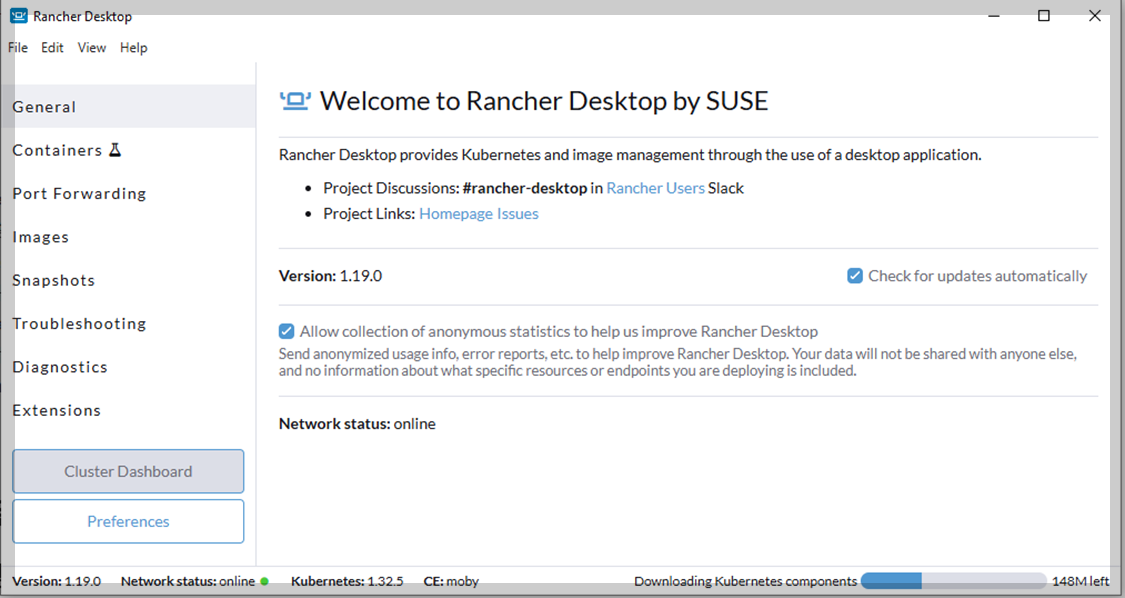

2. Install Rancher Desktop & Docker

Download Rancher Desktop from:
https://rancherdesktop.io

After installation:

• Go to Containers tab
• Set container engine to dockerd (moby)

Verify Docker installation:

docker --version

---

3. Run Keycloak in Docker

Run the following command:

docker run -p 8080:8080 \
  -e KEYCLOAK_ADMIN=admin \
  -e KEYCLOAK_ADMIN_PASSWORD=admin \
  quay.io/keycloak/keycloak:latest start-dev

Then visit: http://localhost:8080
Login: admin / admin

⚠️ start-dev uses an in-memory H2 database. All data will be lost when the container stops.

---

4. Keycloak Configuration

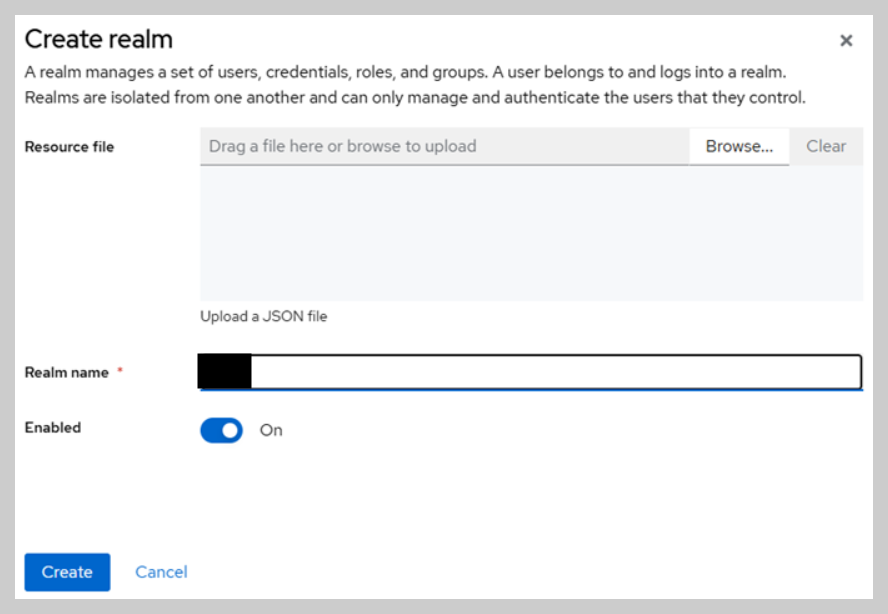

Create a Realm

• Top left → Manage realms → Create realm
• Realm name: demo-realm

Create a Client

• Realm > Clients > Create client
• Client ID: sample-api
• Root URL: http://localhost:5056
• Valid redirect URIs: http://localhost:5056/*

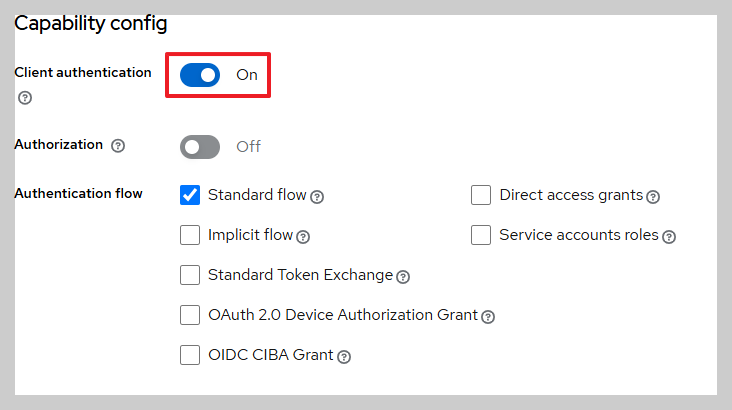

• Enable: Client Authentication under Capability config

Create Client Roles

• Go to Clients → sample-api → Roles
• Add roles: reader, writer, admin

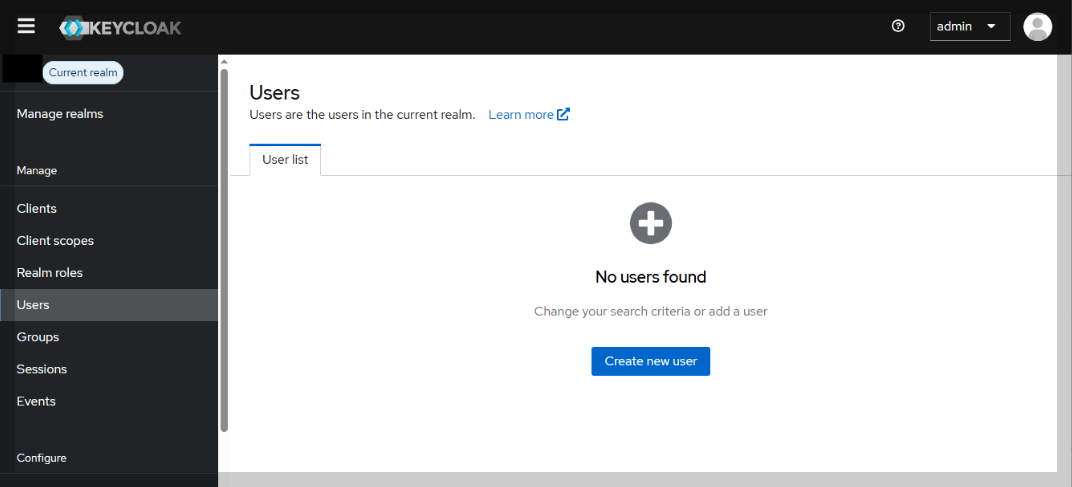

Create Users

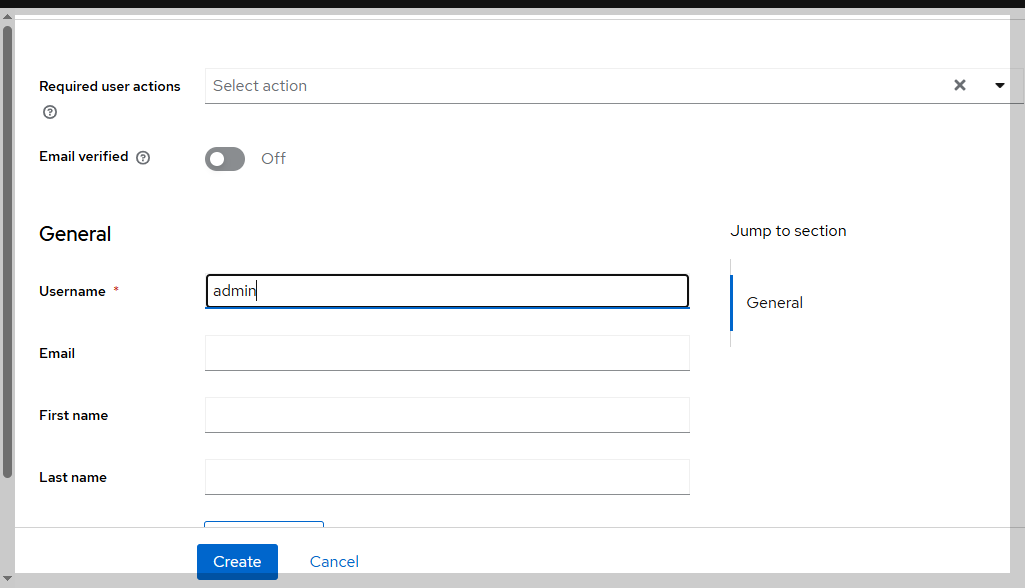

• demo-realm  → Users → Add user
• Create users: admin, reader, writer

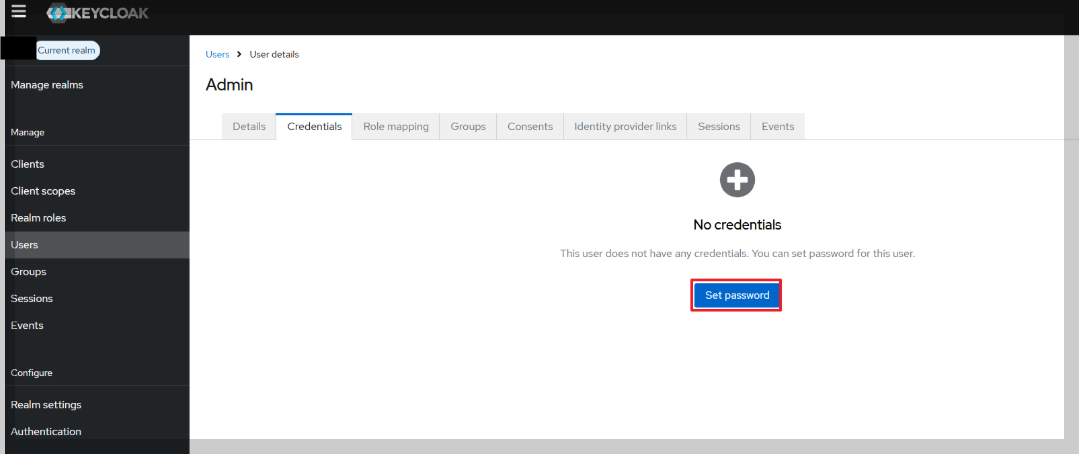

• Set passwords in Credentials tab
• Uncheck "Temporary"

Assign Roles to Users

• Go to each user → Role Mappings
• Assign roles from the client (reader, writer, etc.)

---

5. Test OAuth2 with Swagger UI

Visit:
http://localhost:5056/ sample-api/swagger/index.html

• Click Authorize
• Log in via Keycloak

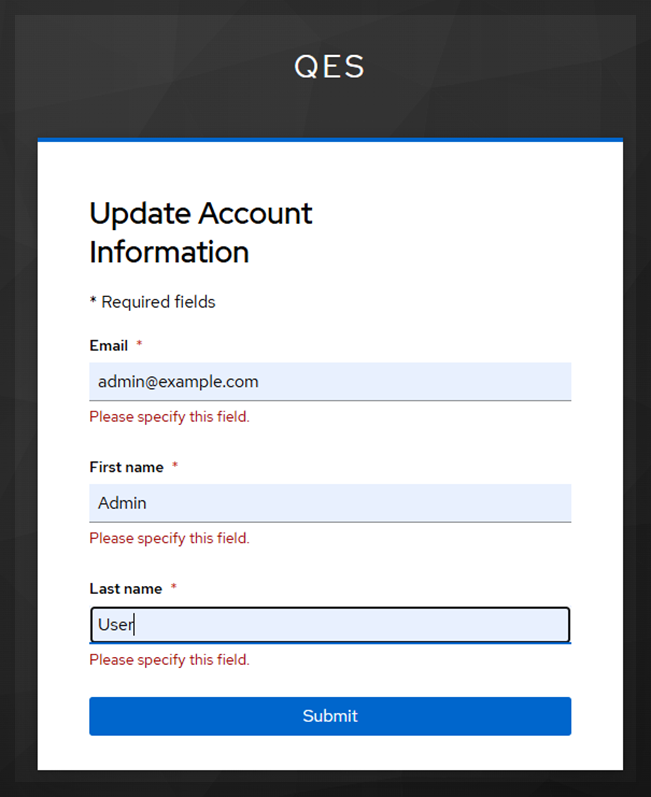

• You may be prompted to complete your account info (name, email)

After login, an access token is issued and used for API testing.

---

System Architecture

+-------------+        +------------------+         +----------------+
|  Browser     | <---> |  Swagger UI (5056)| <--->  |  API Server     |
+-------------+        +------------------+         +----------------+
                                                         ↑
                                                         |
                                                  OAuth2 Token
                                                         ↓
                                             +------------------------+
                                             |  Keycloak (Docker)     |
                                             |  http://localhost:8080 |
                                             +------------------------+

        [Host: Windows] → [WSL2] → [Rancher Desktop] → [Docker Container]

---

Notes

• For production, use start instead of start-dev
• Use an external DB such as PostgreSQL or MySQL
• Consider automating with docker-compose or Helm
